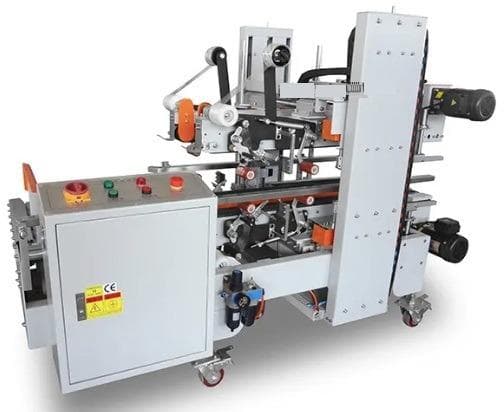

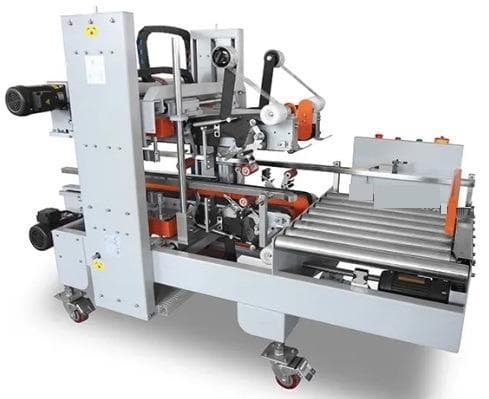

Automatic Edge Carton Sealer
Edge carton sealer that tapes all four top and bottom edges of centre-sealed cartons, reinforcing them for heavy loads and export.
Overview
A centre-sealed carton passes through the machine, which applies printed or plain tape along all four top and bottom edges, the corners where cartons split under load. Edge taping strengthens the box for heavy contents, long-distance transport and stacking, and keeps out dust and insects. PLC control and pneumatics run the taping heads automatically for cartons from 200 to 500 mm long and 180 to 500 mm high, and the machine usually sits straight after a centre-seam carton sealer. It is used for appliances, export cartons, auto parts, FMCG and e-commerce.
- Power draw 1000W
- Seal length 200-500 MM
- Seal width 320 X 500 MM
- Conveyor load 30 KG
Specifications
Figures as published in our catalogue. Custom sizes are fabricated to end-user specification.
All Carton Sealing & TapingModel IP 5050 (FOUR EDGE CORNER TAPING)
Quote this model| POWER SUPPLY (V/Hz) | 220, 50 -60 |
|---|---|
| POWER LOAD (W) | 1000 |
| SEALING HEIGHT (H) MM | 180-500 |
| SEALING LENGTH (L) MM | 200-500 |
| SEALING WIDTH (W) MM | 320 X 500 |
| CONVEYOR MOTOR (W) | 180 X 4 |
| MAX. CONVEYOR LOADING (KG) | 30 |
| SPEED (M/MIN.) | 17.5 |
| AIR PRESSURE (KG/CM2) | 5-6 |
| HEIGHT OF TABLE (MM) | 660-740 |
| WIDTH OF ADHESIVE TAPE (MM) | 60-76 |
| CORE COMPONENT | PLC, AC MOTOR |
| EXTERNAL DIMENSION (MM) | 1970 X 1100 X 1470 |
| NET WEIGHT (KG) | 400 |
| INLET AND OUTLET IDLER ROLLER CONVEYOR | OPTIONAL |
