Vacuum Packing
Vertical Rice / Brick Vacuum Packing Machine
Vacuum packer that forms rice, grains, tea and coffee into hard, brick-shaped packs that stack neatly and keep fresh through long storage.
Overview

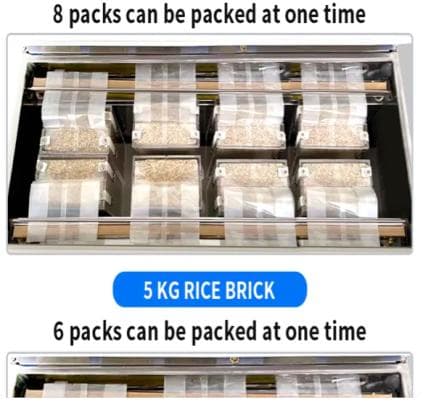

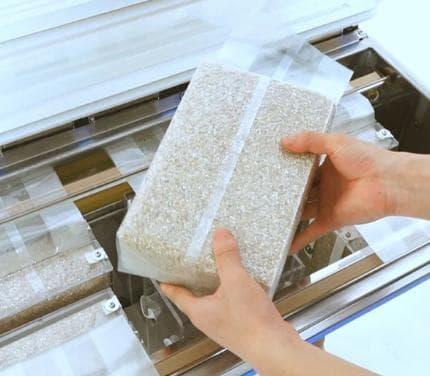

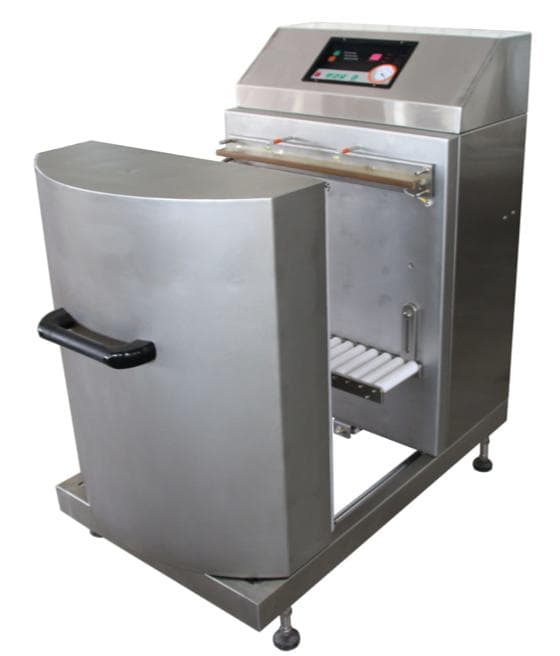

Rice, pulses, tea, coffee and powders are packed in pouches and vacuumed into hard, rectangular bricks that stack neatly, resist insects and moisture and stay fresh through long storage and export. In the vertical version the pouches stand upright in the chamber, so loose grains stay settled while the air is drawn out, and 800 mm sealing bars close several packs at once; a horizontal chamber version packs rice bricks laid flat. Built in stainless steel with a 20 m³/h vacuum pump and overload protection, it suits rice mills, grain and pulse packers, tea and coffee brands and powder producers.
- Seal length 800 MM
- Seal width 10 MM

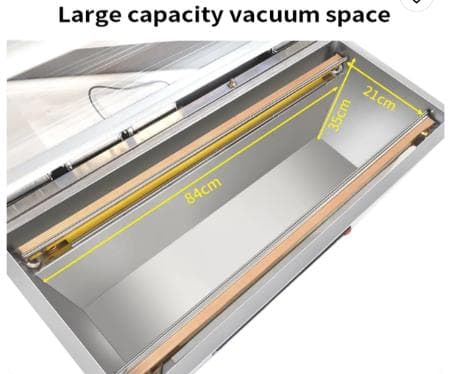

- Chamber 840 X 210 X 350 MM
- Footprint 900 X 450 X 810 MM
- The entire construction is being done is stainless steel grade
Specifications
Figures as published in our catalogue. Custom sizes are fabricated to end-user specification.
All Vacuum PackingModel DZ850S
Quote this model| SEALING LENGTH (MM) | 800 |
|---|---|
| SEALING WIDTH (MM) | 10 |
| POWER SUPPLY (V/Hz) | 220/50-60 |
| POWER LOAD ELEMENT (KW) | 750 |
| POWER LOAD MOTOR (KW) | 950 |
| SAFETY DEVICE | OVERLOAD PROTECTION RELAY |
| CHAMBER DIMENSION (MM) | 840 X 210 X 350 |
| NO. OF SEALING BAR | 2 |
| SEALING BAR GAP (MM) | 300 |
| VACUUM PUMP (M3/HR) | 20 X 1 |
| OVERALL DIMENSION (MM) | 900 X 450 X 810 |
