Conveyors & Material Handling

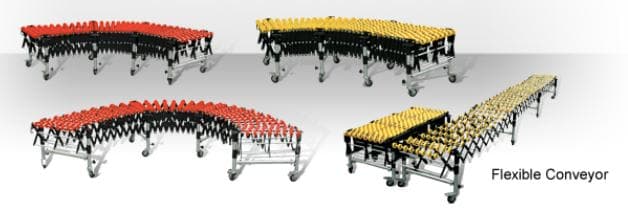

Flexible Roller Conveyor
Powered flexible roller conveyor that stretches, shortens and curves to follow your dispatch route, for loading cartons on and off trucks.
Overview
Sections of driven rollers on a scissor-type frame expand, contract and bend, so the conveyor can be pulled out to reach a truck, pushed back when it is not needed, or curved around a corner of the dock. Each 2 m section has its own motor driving the rollers through multi-ribbed belts, with variable speed and forward or reverse running, and the frame stands on braked castors so it can be moved and locked anywhere. Roller widths from 500 to 1200 mm handle cartons, cases and parcels in warehouses, e-commerce fulfilment, courier hubs and factory dispatch.
- Roller widths of 500, 600, 800, 1000 and 1200 mm
- Expands, contracts and curves to follow the dispatch route
- AC motor drive with a separately mounted control panel
- Powered runs of at least 5 to 8 metres
Specifications
Figures as published in our catalogue. Custom sizes are fabricated to end-user specification.
All Conveyors & Material HandlingModel Flexible Roller Conveyor
Quote this model| ROLLER WIDTH (MM) | 500 / 600 / 800 / 1000 / 1200 |
|---|---|
| ROLLER DIAMETER (MM) | 50, SS 201, 1.5 MM WALL |
| DRIVE | POWERED, MULTI-RIBBED BELT |
| CONVEYOR SPEED (m/min.) | 1-45 (VARIABLE) |
| LOAD CAPACITY (KG/M) | 200 |
| WORKING HEIGHT (MM) | 670-1000 (ADJUSTABLE) |
| CASTORS | 5" DOUBLE-BEARING WITH BRAKES |
| MATERIAL OF CONSTRUCTION | GALVANISED STEEL |
| POWER SUPPLY (V/Hz) | 220/50-60 |
| POWER LOAD (W) | 120 PER 2 M SECTION |
