Truck Loading Conveyor

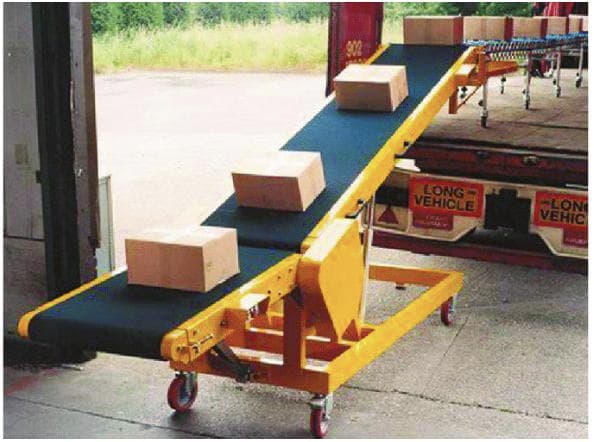

Mobile inclined belt conveyor for loading and unloading cartons and bags between the dock floor and the truck bed.
Overview
An inclined belt conveyor on wheels that bridges the gap between the dock floor and the truck bed. Cartons and bags placed at the lower end are carried up into the vehicle, or brought down when unloading, so goods move on the belt instead of being lifted by hand. Built in mild steel with a powder-coated finish, it handles 50 to 100 kg per metre in 30 to 35 ft lengths, and can be linked with floor and flexible conveyors to make a complete loading line.
- Power draw 1 KW
- Construction MILD STEEL
- Capacity 50 TO 100 KGS PER METER
MS powder coated structure
Wheel mounted at bottom
Optional
Specifications
Figures as published in our catalogue. Custom sizes are fabricated to end-user specification.
All Conveyors & Material HandlingModel IPTLC35
Quote this model| POWER SUPPLY | 220V, 50-60 Hz |
|---|---|
| POWER LOAD | 1 KW |
| MATERIAL | MILD STEEL |
| TYPE | FLOOR CONVEYOR & FLEXIBLE CONVEYOR |
| LENGTH | 30 TO 35 FEET |
| MATERIAL HANDLING CAPACITY | 50 TO 100 KGS PER METER |
