L-Sealers & Side Sealers
Economy Automatic L Sealer With Shrink Tunnel
Economy automatic L sealer with a matching shrink tunnel, a complete entry-level line for continuous POF shrink wrapping.
Overview

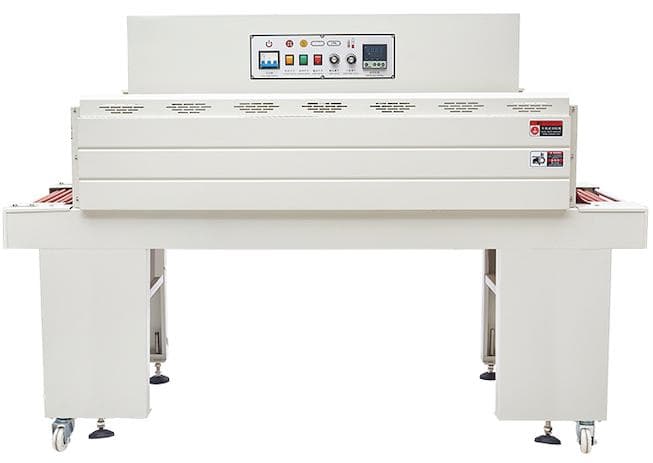

An automatic L sealer and shrink tunnel supplied as a matched pair, giving smaller producers continuous shrink wrapping without assembling a line from separate machines. The L sealer feeds POF film and seals and cuts it around each product with a Teflon-coated alloy blade, sensors adjust the seal to the pack, and the tunnel shrinks the film into a tight, clear wrap. It suits retail boxes, cosmetics, stationery, food trays and household goods at 15 to 25 packs a minute.
- Tunnel aperture from - to 450 X 200 MM
- Maximum pack size from L+2H<550, W+2H<450, H<130 to -
- Power draw from 2.4 to 12.0 KW
- Conveyor load 20 KG
- Available in 2 models: IP5545ALB, IP 4520A
- Heat resistant alloy blade Teflon coated and easy to clean
Specifications by model
2 models are available in this range. Select one to see its own figures, exactly as published in our catalogue.
All L-Sealers & Side SealersModel IP5545ALB
Quote this model| TUNNEL SIZE (WXH) MM | - |
|---|---|
| CUTTER SIZE (LXW)MM | 550 x 450 |
| MAX PACK SIZE MM | L+2H<550, W+2H<450, H<130 |
| POWER SUPPLY (V/Hz) | 220/50-60 |
| POWER LOAD (KW) | 2.4 |
| AIR PRESSURE KG/CM2 | 5-6 |
| CONVEYOR LOAD (KG) | 20 |
| CONVEYOR WIDTH (MM) | 550 |
| PACKING SPEED (PKT/MIN.) | 15-25 |
| SHRINK FILM | POF |
| HEATING DUCT SIZE (MM) | - |
| OVERALL DIMENSION (MM) | 1760 X 940 X 1570 |
| WEIGHT (KG) | 200 |
