L-Sealers & Side Sealers

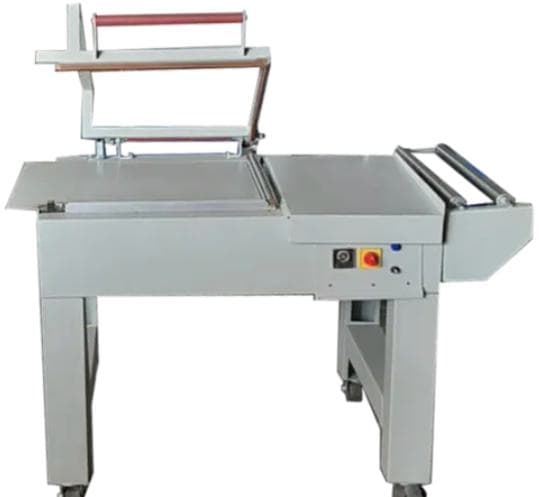

Manual L Sealer
Hand-operated L sealer that seals and cuts shrink film around the product, for low-volume shrink wrapping with a separate tunnel.
Overview
The operator places the product in centre-folded shrink film and presses the L-shaped sealing frame down by hand; the heated sealing bar seals and cuts the film on two sides in one action, and the wrapped product is then guided into a shrink tunnel. Simple, robust and low-cost, it suits start-ups, retailers and small workshops, with an average output of 400 to 500 packs an hour depending on the operator and product. Any sealing size can be made to order.
- Sealing area 550 X 400 X 150 MM
- Power draw 1.5 KW
- Conveyor load 15 KG
- Footprint 1560 X 760 X 1050 MM
- And all electricals and pneumatic can be fitted as per customer requirement
- Custom sizes fabricated to end-user specification
ANY SIZE CAN BE MANUFACTURED AS PER CUSTOMER REQUIREMENT
AND ALL ELECTRICALS AND PNEUMATIC CAN BE FITTED AS PER CUSTOMER REQUIREMENT
Specifications
Figures as published in our catalogue. Custom sizes are fabricated to end-user specification.
All L-Sealers & Side SealersModel IP 5540 L
Quote this model| SEALING SIZE (L X W X H) MM | 550 X 400 X 150 |
|---|---|
| POWER SUPPLY (V/Hz) | 220 / 50 -60 |
| POWER LOAD (KW) | 1.5 |
| CONVEYOR LOADING (KG) | 15 |
| EXTERNAL DIMENSION (MM) | 1560 X 760 X 1050 |
| NET WEIGHT (KG) | 65 |
