Horizontal Vacuum Packaging Machine
Horizontal nozzle-type vacuum sealer for bulky products and large bags that will not fit in a chamber, with optional gas flushing.
Overview

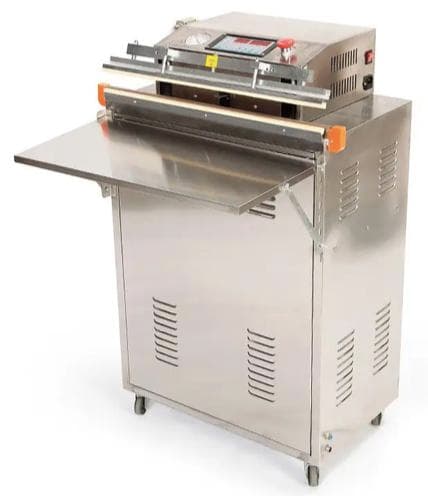

The bag lies on the worktable with its mouth over the nozzle; the machine draws out the air or flushes in nitrogen, then seals across up to 800 mm in one stroke. Because nothing has to fit inside a chamber, it handles bulky and awkward products such as large meat cuts, cheese blocks, bulk dry fruit, textiles and machine parts, in bags up to 800 mm wide. Modes cover vacuum and seal, vacuum with gas flush and seal, gas flush and seal, or seal only.
- Seal length 800 MM
- Seal width 10 MM
- Chamber NIL MM
- Footprint 900 X 1100 X 1300 MM
Specifications
Figures as published in our catalogue. Custom sizes are fabricated to end-user specification.
All Vacuum PackingModel DZH 800
Quote this model| SEALING LENGTH (MM) | 800 |
|---|---|
| SEALING WIDTH (MM) | 10 |
| POWER SUPPLY (V/Hz) | 220/50-60 |
| POWER LOAD ELEMENT (KW) | 750 |
| POWER LOAD MOTOR (KW) | 950 |
| CHAMBER DIMENSION (MM) | NIL |
| MAX POUCH WIDTH (MM) | 800 |
| NO. OF SEALING BAR | 1 |
| VACUUM PUMP (M3/HR) | 20 X 1 |
| OVERALL DIMENSION (MM) | 900 X 1100 X 1300 |
| GAS FLUSHING | OPTIONAL |
| NET WEIGHT (KG) | 105 |
