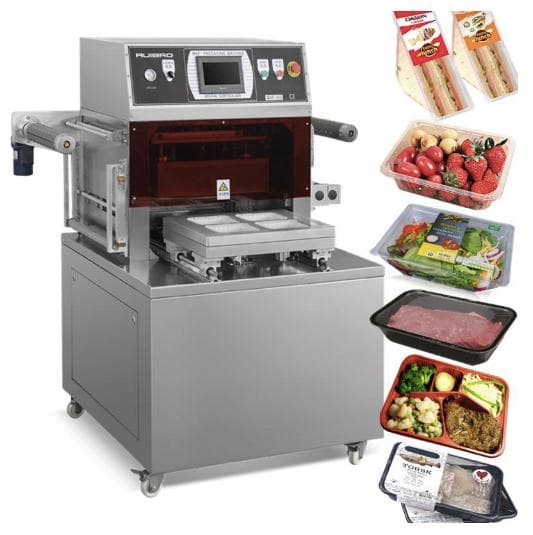

Semi-Automatic Modified Atmosphere Tray Vacuum Sealer
MAP tray vacuum sealer with gas mixer and PLC touch screen, sealing 1 to 6 trays per cycle under a protective gas atmosphere.
Overview
Trays are placed in the mould and drawn into the sealing chamber, where the machine vacuums them, flushes in nitrogen or a mixed gas, heat-seals the lidding film and trims each tray clean. At about 3 cycles a minute with 1 to 6 trays per cycle, it suits meat, poultry and seafood processors, ready-meal kitchens, bakeries and fresh-cut produce packers that need modified atmosphere packs at a steady rate. It is built in food-grade SS 304 with PLC and touch-screen control, and tray moulds are made to the customer's tray.
- Power draw from 5 KW to 1 KW
- Construction FOOD GRADE SS 304 STAINLESS STEEL
- Footprint 1050 X 720 X 940 MM 720 x 630 x 555 mm
- Machine weight from 450 KG to 69 KG
- Available in 2 models: IP 450A TV, IP 450B TV GAS MIXER
Accordingly to user requirement
Sealing
Specifications by model
2 models are available in this range. Select one to see its own figures, exactly as published in our catalogue.
All Vacuum PackingModel IP 450A TV
Quote this model| TRAY SIZE | TRAY SIZE NOT FIXED. CUSTOMISED |
|---|---|
| TRAY DEPTH | 70 MM STANDARD DEPTH |
| TRAYS PER CYCLE | 1-6 TRAYS AT THE SAME TIME |
| PACK SPEED | ABOUT 3 CYCLES PER MINUTE |
| AIR COMPRESSOR | REQUIRED, IN END USER SCOPE |
| AIR PRESSURE | 0.7 TO 0.8 Mpa |
| POWER SUPPLY | 380V/ 50HZ/3 PHASE 220V, 50 HZ/1 PHASE |
| POWER LOAD | 5 KW |
| VACUUM PUMP | 63M3/HR 63M3/HR |
| GAS PRESSURE | 0.2 TO 0.3 Mpa 0.2 TO 0.3 Mpa |
| CONTROLLER | PLC + TOUCH SCREEN |
| MATERIAL OF CONS | FOOD GRADE SS 304 STAINLESS STEEL |
| OVERALL DIMENSION | 1050 X 720 X 940 MM 720 x 630 x 555 mm |
| NET WEIGHT | 450 KG |
| FUNCTION | VACUUM, GASES |
| MIXING, FILLING AND | AND SEALING O2 + CO2+ N2 |
