Thermoforming Skin Vacuum Packing Machine
Fully automatic thermoforming line that forms trays from roll film, vacuum skin packs the product, then seals and cuts the finished packs.
Overview

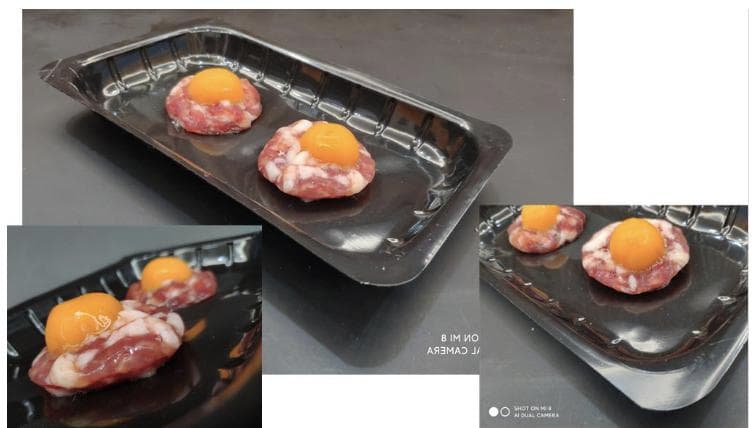

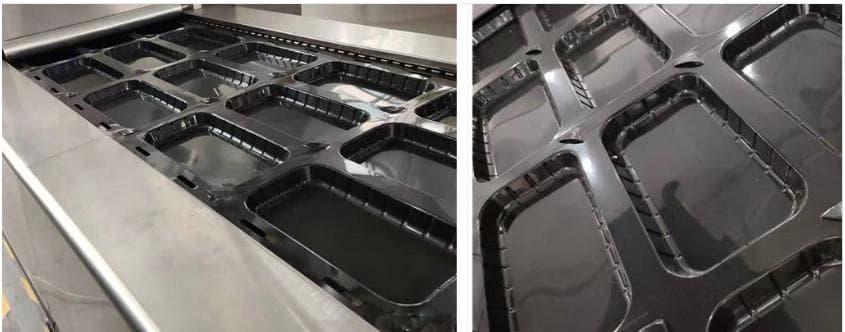

The machine forms its own trays. The bottom film is heated and drawn into moulds, product is placed into the formed cavities, and the top skin film is heated and drawn down over it under vacuum, then sealed and cut into finished packs. Only the two film rolls need loading, so there is no tray stock to buy or store, and output reaches about 300 cycles an hour with several packs per cycle. Built in food-grade 304 stainless steel and aluminium alloy, it is the high-volume solution for meat, sausage, seafood, cheese and ready-meal producers, and can also run vacuum with gas flushing.
- Construction 90% FOOD GRADE 304 STAINLESS STEEL + 10% ALUMINIUM ALLOY
- Power draw 15 20 KW
- Footprint from 5600 X 900 X 1910 MM to 5910 X 1050 X 1910 MM
- Throughput PACK SEVERAL PACKS PER CYCLE, FINISHS ABOUT 300 CYCLES PER HOUR
- Available in 2 models: IP SKIN 320, IP SKIN 420
Specifications by model
2 models are available in this range. Select one to see its own figures, exactly as published in our catalogue.
All Vacuum PackingModel IP SKIN 320
Quote this model| MATERIAL | 90% FOOD GRADE 304 STAINLESS STEEL + 10% ALUMINIUM ALLOY |
|---|---|
| FLIM TYPE | VACUUM SKIN PACK |
| FILM WIDTH | <290 MM |
| STEP LENGTH | <290 MM |
| AIR PRESSURE | PRESSURE 0.6-0.8Mpa, SUPPLIED BY AIR COMPRESSOR |
| AIR COMPRESSOR | NOT INCLUDED, 400L TANK AIR COMPRESSOR REQUIRED |
| POWER SUPPLY | 380V, 50 HZ/THREE PHASE |
| POWER LOAD | 15 20 KW |
| FUNCTION | FORM CONTAINER, VACUUM SKIN PACK, SEAL, CUT |
| VACUUM PUMP | BUSCH 150M3/HR OR EQUIVALENT |

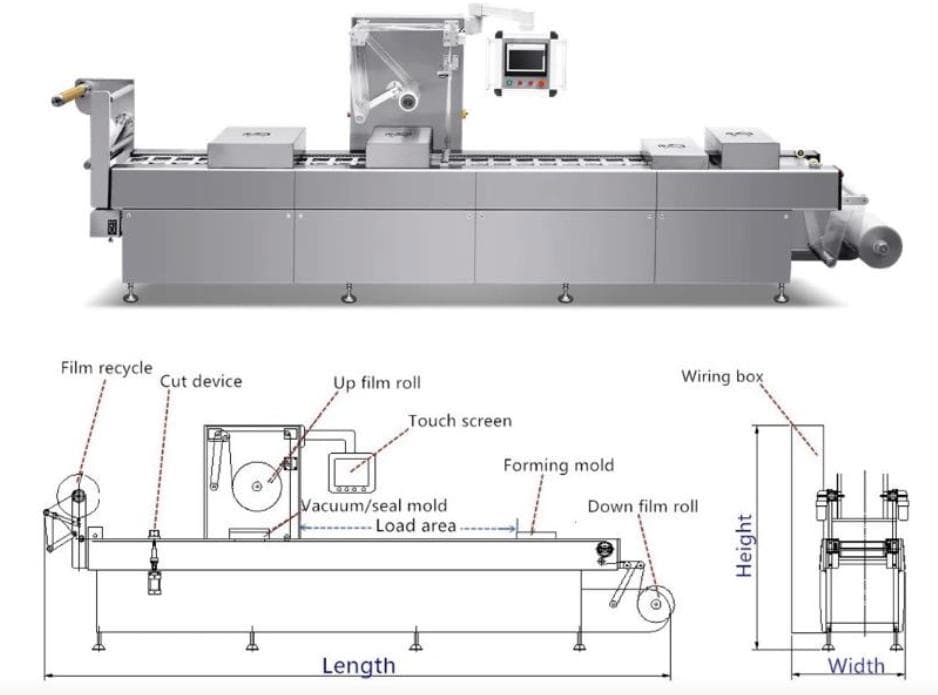

| OVERALL DIMENSION | 5600 X 900 X 1910 MM |
| WEIGHT | 1500 2000 KG APPROX |
| PACKING SPEED | PACK SEVERAL PACKS PER CYCLE, FINISHS ABOUT 300 CYCLES PER HOUR |

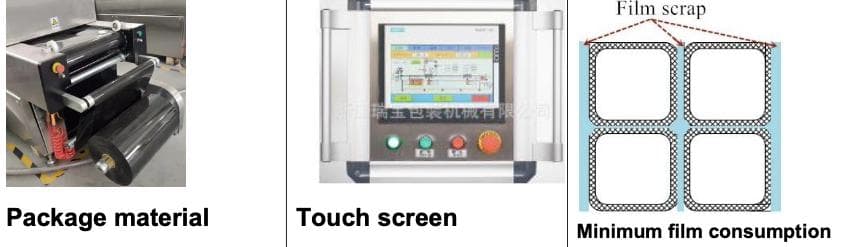

| PLC & TOUCH SCREEN | MITSUBHISHI MAKE |
| SERVO MOTOR & CONTROL | MITSUBHISHI MAKE |
| ELECTRICAL | SCHNIEDER MAKE |
| UP FILM | FILM SPECIAL FOR VACUUM SKIN PACK PURPOSE 0.1 TO 0.12 MM THICK |
| DOWN FILM | RIGID FILM FOR STRETCH PURPOSE (MULTI-LAYER COEXTRUSION) 0.3 - 0.5 MM THICK |
