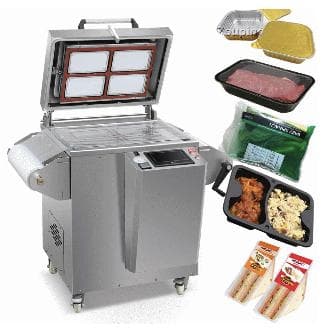

Vertical Modified Atmosphere Tray Packing Machine
MAP tray sealer with gas mixer that vacuums each tray, flushes it with nitrogen or a gas mix and seals it under lidding film.
Overview
The operator loads filled trays into the mould and closes the lid; the machine draws a vacuum, flushes in nitrogen or a mixed gas from the gas mixer, heat-seals a lidding film across each tray and trims it. Replacing the air with a protective atmosphere slows spoilage and holds colour, so raw meat and poultry, cooked and chilled meals, cut fruit, bakery and frozen foods last longer on the shelf. Built in food-grade SS 304 with PLC and touch-screen control, it seals 1 to 6 trays per cycle at about 2 cycles a minute, with moulds made to the user's tray.
- Power draw from 3.5 KW to 1 KW
- Construction FOOD GRADE SS 304 STAINLESS STEEL
- Footprint 1050 X 720 X 940 MM 720 x 630 x 555 mm
- Machine weight from 315 KG to 69KG
- Available in 2 models: IP 430A TV, IP 430B TV GAS MIXER
Specifications by model
2 models are available in this range. Select one to see its own figures, exactly as published in our catalogue.
All Vacuum PackingModel IP 430A TV + GAS MIXER
Quote this model| TRAY SIZE | NOT FIXED. CUSTOMISED ACC TO USER REQ. |
|---|---|
| TRAY DEPTH | 70 MM STANDARD DEPTH |
| TRAYS PER CYCLE | 1-6 TRAYS AT THE SAME TIME |
| PACK SPEED | ABOUT 2 CYCLES PER MINUTE |
| AIR COMPRESSOR | REQUIRED, IN END USER SCOPE |
| AIR PRESSURE | 0.7 TO 0.8 MPa |
| POWER SUPPLY | 380V/ 50HZ/3 PHASE + 220V, 50 HZ/1 PHASE (GAS MIXER) |
| POWER LOAD | 3.5 KW + 1KW |
| VACUUM PUMP | 63 M³/HR |
| GAS PRESSURE | 0.2 TO 0.3 MPa |
| CONTROLLER | PLC + TOUCH SCREEN |
| MATERIAL OF CONS | FOOD GRADE SS 304 STAINLESS STEEL |
| OVERALL DIMENSION | 1050 X 720 X 940 MM + 720 x 630 x 555 MM (GAS MIXER) |
| NET WEIGHT | 315 KG + 69 KG |
| FUNCTION | VACUUM, GASES MIXING, FILLING AND SEALING |
| GAS MIX | PREMIX (O₂ + CO₂ + N₂) |
