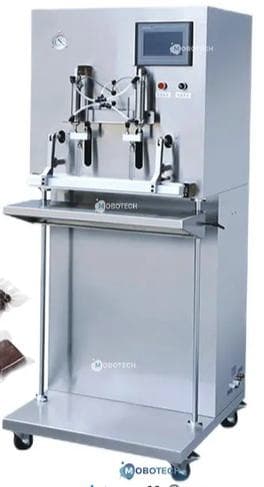

Vertical Vacuum Packing Machine
Vertical nozzle-type vacuum sealer for large bags and bulk pouches, with vacuum, gas flushing and sealing in one machine.
Overview
There is no chamber to limit bag size. The open mouth of a large bag or bulk pouch is placed over the nozzle at the sealing bar; the nozzle draws out the air or flushes in nitrogen, then withdraws as the 1000 mm bar seals the bag. The bag stands upright on the adjustable shelf while it is sealed, which suits bulk coffee, rice, tea, powders, electronic components and industrial parts. It runs vacuum and seal, vacuum with gas flush and seal, gas flush and seal, or seal only, and is built in stainless steel.
- Seal length 1000 MM
- Seal width 10 MM
- Chamber 840 X 210 X 350 MM
- Footprint 900 X 450 X 810 MM
- The entire construction is being done is stainless steel grade
Vacuum + Sealing/ Vacuum + Gas Flushing + Sealing/ Gas Flushing + Sealing/ Sealing
Specifications
Figures as published in our catalogue. Custom sizes are fabricated to end-user specification.
All Vacuum PackingModel DZV1000
Quote this model| SEALING LENGTH (MM) | 1000 |
|---|---|
| SEALING WIDTH (MM) | 10 |
| POWER SUPPLY (V/Hz) | 220/50-60 |
| POWER LOAD ELEMENT (KW) | 750 |
| POWER LOAD MOTOR (KW) | 950 |
| SAFETY DEVICE | OVERLOAD PROTECTION RELAY |
| CHAMBER DIMENSION (MM) | 840 X 210 X 350 |
| NO. OF SEALING BAR | 2 |
| VACUUM PUMP (M3/HR) | 20 X 1 |
| GAS FLUSHING | PROVIDED |
| OVERALL DIMENSION (MM) | 900 X 450 X 810 |
| NET WEIGHT (KG) | 270 |
