Table Top Paste Filling Machine With Mixing Hopper

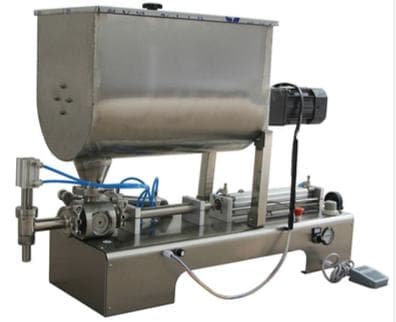

Pneumatic piston paste filler with a motorised mixing hopper that keeps thick and particulate products uniform while filling.
Overview

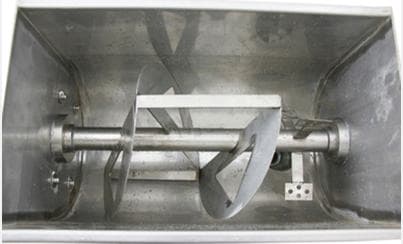

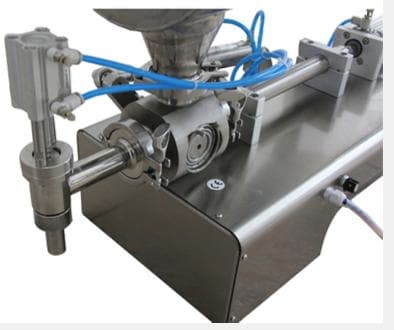

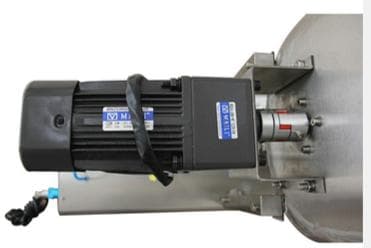

A pneumatic piston draws a set volume of product from the hopper and pushes it out through the nozzle, giving the same fill every cycle, while a heavy-duty AC motor turns a stirrer in the hopper so sauces with particles, pastes, creams, ghee and batters stay evenly mixed and do not separate. Fill volume from 100 to 1000 ml is set on the cylinder sensor, and the machine runs in manual or automatic mode at 600 to 900 fills an hour. It is built in SS 304, with a single or double nozzle, and needs a compressed air supply.
- Filling range 100-1000 ML
- Power draw 50W
- Construction STAINLESS STEEL 304
- Capacity 20 LITRE DEPNEDING UPON PRODUCT VISCOSITY
- As this machine has various filling range which can be set on magnetic cylinder sensor setting
- Custom sizes fabricated to end-user specification
Any other range can be manufactured as per customer specification in semi automatic or fully automatic mode
Specifications
Figures as published in our catalogue. Custom sizes are fabricated to end-user specification.
All Liquid, Paste & Powder FillingModel IPPF 1000
Quote this model| FILLING NOZZLE | SINGLE OR DOUBLE |
|---|---|
| FILLING RANGE (ML) | 100-1000 |
| AIR PRESSURE (KG/CM2) | 5 TO 6 |
| POWER SUPPLY (V/Hz) | 220 50 -60 |
| POWER LOAD | 50W |
| FILLING SPEED (BOTTLE/HOUR) | 600-900 |
| AIR COMPRESSOR | END USER SCOPE |
| MATERIAL OF CONSTRUCTION | STAINLESS STEEL 304 |
| AC MOTOR (W) | 90 |
| HOPPER CAPACITY | 20 LITRE DEPNEDING UPON PRODUCT VISCOSITY |
