PVC Shrink Wrapping Machine
Hot-air shrink tunnel that shrinks PVC or POF film tight around cups, tubs, boxes and multipacks once they have been wrapped and sealed.
Overview

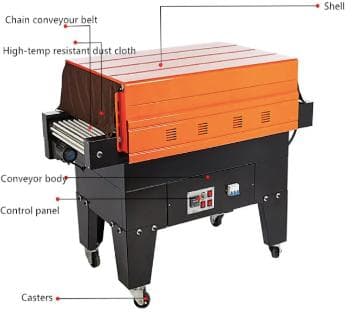

The product, already wrapped and sealed in PVC or POF shrink film, rides through the tunnel on the conveyor while blowers circulate hot air evenly around it, shrinking the film into a tight, clear, tamper-evident wrap. Tunnel temperature and conveyor speed are set independently, so the same tunnel handles thin POF on light retail packs and heavier PVC on bundles. It pairs with a manual, semi-automatic or automatic L sealer and is used for instant noodle cups and bowls, yoghurt and milk tea cups, cosmetics, toothpaste, batteries, stationery, disposable tableware and multipacks. Four tunnel sizes cover everything from small retail items to wide bundles.
- Tunnel aperture from 450 X 250 to 850 X 350 MM
- Power draw from 7.5 to 18.0 KW
- Conveyor speed 0-15 m/min
- Tunnel temperature 250-300 Deg.C
- Available in 4 models: IP4525A, IP4535LA, IP6535LA, IP8535LA
Specifications by model
4 models are available in this range. Select one to see its own figures, exactly as published in our catalogue.
All Shrink Wrapping & TunnelsModel IP4525A
Quote this model| TUNNEL SIZE(W XH)MM | 450 X 250 |
|---|---|
| POWER SUPPLY(V/Hz) | 220/380/50-60 |
| POWER LOAD (KW) | 7.5 |
| HEATING ZONE | (mm) 1000 1200 |
| CONVEYOR SPEED (m/min.) | 0-15 |
| MAX. TEMPERATURE (Deg.C) | 250-300 |
| MAX PACK SIZE (W) x (H)mm | 350 x 175 |
| SHRINK FILM | PVC,POF |
| MAX LOADING (Kg) | 10 |
| BLOWER MOTOR (W/RPM) | 80/2800 |
| CONVEYOR MOTOR (W) | 25W AC |

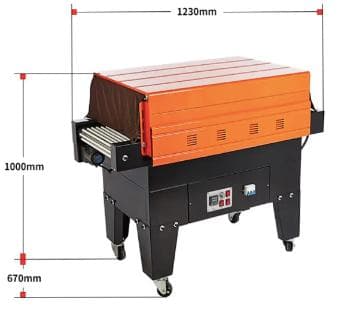

| OVERALL DIMENSION (MM) | 1200x670x680 |
| MACHINE WEIGHT (KG) | 90 |
