Medium Reel Stretch Wrapping Machine
Reel stretch wrapper that seals film, foil and paper reels up to 500 mm in diameter inside a full cocoon of stretch film.
Overview

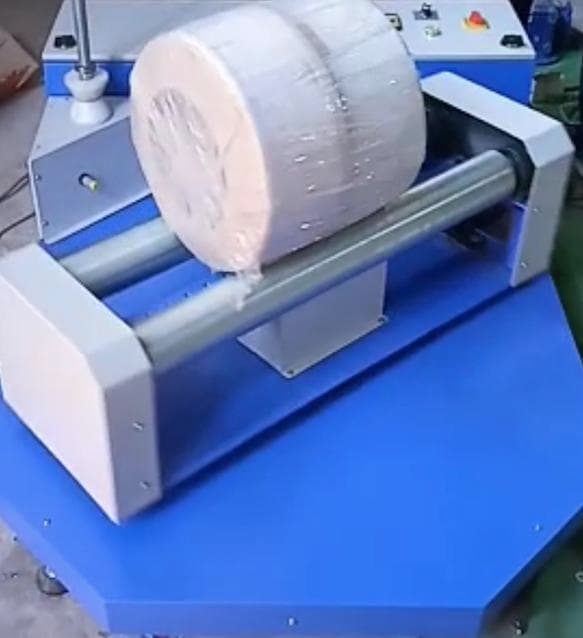

The reel rests on driven rollers that turn it on its own axis, while stretch film is applied across the faces and along the periphery with an even overlap, closing the reel in a complete cocoon. That protects the edges and faces of film, foil, paper, fabric and cable reels from dust, moisture and handling damage in storage and transit. A variable-speed AC motor and drive set the wrapping speed, it runs on manual or machine-grade film, and a pre-stretch unit is available as an option.
- Power draw 300W
- This machine adopts axial wrapping to apply layers of film across the face diametrically and wrap them along the longitudinal axis
- The longitudinalperiphery with uniform overlap forming a cocoon type packing
MS powder coated heavy duty structure
Specifications
Figures as published in our catalogue. Custom sizes are fabricated to end-user specification.
All Stretch WrappingModel IPRW 600
Quote this model| POWER SUPPLY 220V, 50 | 60 Hz |
|---|---|
| POWER LOAD | 300W |
| MAX REEL DIAMETER | 500 mm |
| PRE STRETCH UNIT | OPTIONAL |
| VARIBALE SPEED AC MOTOR | ¼ HP WITH AC DRIVE |
| STRETCH FILM ROLL | MANUAL / MACHINE GRADE |
