Pallet Stretch Wrapping Machine

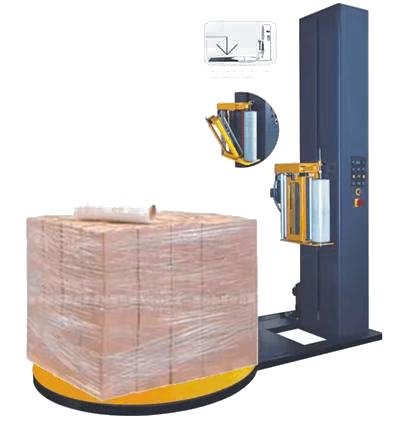

Turntable pallet stretch wrapper with powered pre-stretch and PLC control, wrapping a full pallet load in about two minutes.
Overview
The loaded pallet sits on the 1500 mm turntable; as it turns, the film carriage travels up and down the mast, wrapping overlapping layers of stretch film from the base to the top of the load. The pre-stretch unit stretches the film 250–300% before it reaches the load, so each roll wraps far more pallets and the film holds the load tighter. PLC control synchronises three AC motors and drives for turntable speed, carriage speed and wrap count, and a pneumatic top press is available to hold light or unstable loads. Wrapped pallets stay stable in transit and protected from dust and moisture, at roughly one pallet every two minutes.
- Power draw 1.5 KW
- Throughput 1900 mm**
- It plays a role of dustproof, moisture proof and bulk proof packaging of the goods
Specifications
Figures as published in our catalogue. Custom sizes are fabricated to end-user specification.
All Stretch WrappingModel IP 2100
Quote this model| POWER SUPPLY 220V, 50 | 60 Hz |
|---|---|
| POWER LOAD | 1.5 KW |
| MAX PACKING HEIGHT | 1900 mm** |
| TURN TABLE DIAMETER | 1500 mm |
| TURN TABLE HEIGHT | 80 - 100 mm |
| TENSILE STRENGTH OF STRETCH FILM | 250 to 300% |
| PALLET DIMENSION MAX | (500 - 1500 mm) x (500 - 1900 mm) |
| PRE STRETCH UNIT | PROVIDED |
| WORKING SPEED | ONE PALLET PER TWO MINUTES |
| PNEUMATIC TOP PRESS | OPTIONAL |
| PLC BASED | SYNCRONIZATION WITH THREE AC MOTORS AND THREE AC DRIVES. |
